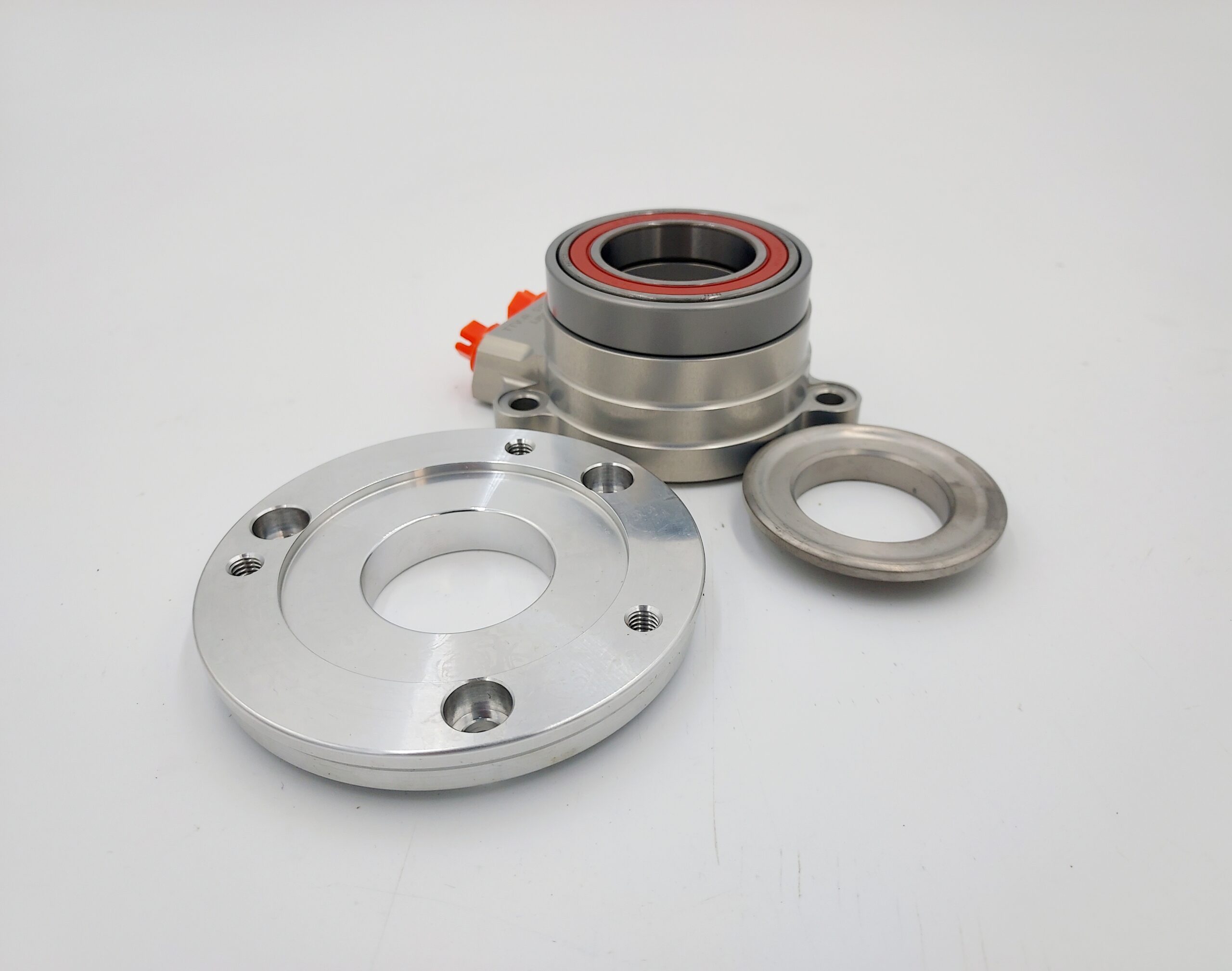

The Parts shown allow you to upgrade from the Titan Universal Cylinder to our Motorsport Cylinder and maintain the same installed heights using our small bearing 15mm stroke cylinder.

• Stroke lengths available are 15mm and 18mm with an internal bore of up to 36mm for larger input shafts.
• Hard Anodized Body and piston to protect against corrosion and wear.
• Twin sealed system for long service life tested at 1200PSi
• Teflon coated piston for smooth low resistance action.
• Sealed high quality high load bearing.
• Nitrided bearing contact face options
• Round bearing faces: 40mm, 46mm, 50mm.
• Flat bearing faces: 59mm OD 44mm ID
• Custom mounts for our release bearings can be made
• Spacers, adaptors and fixings are available but not included.
