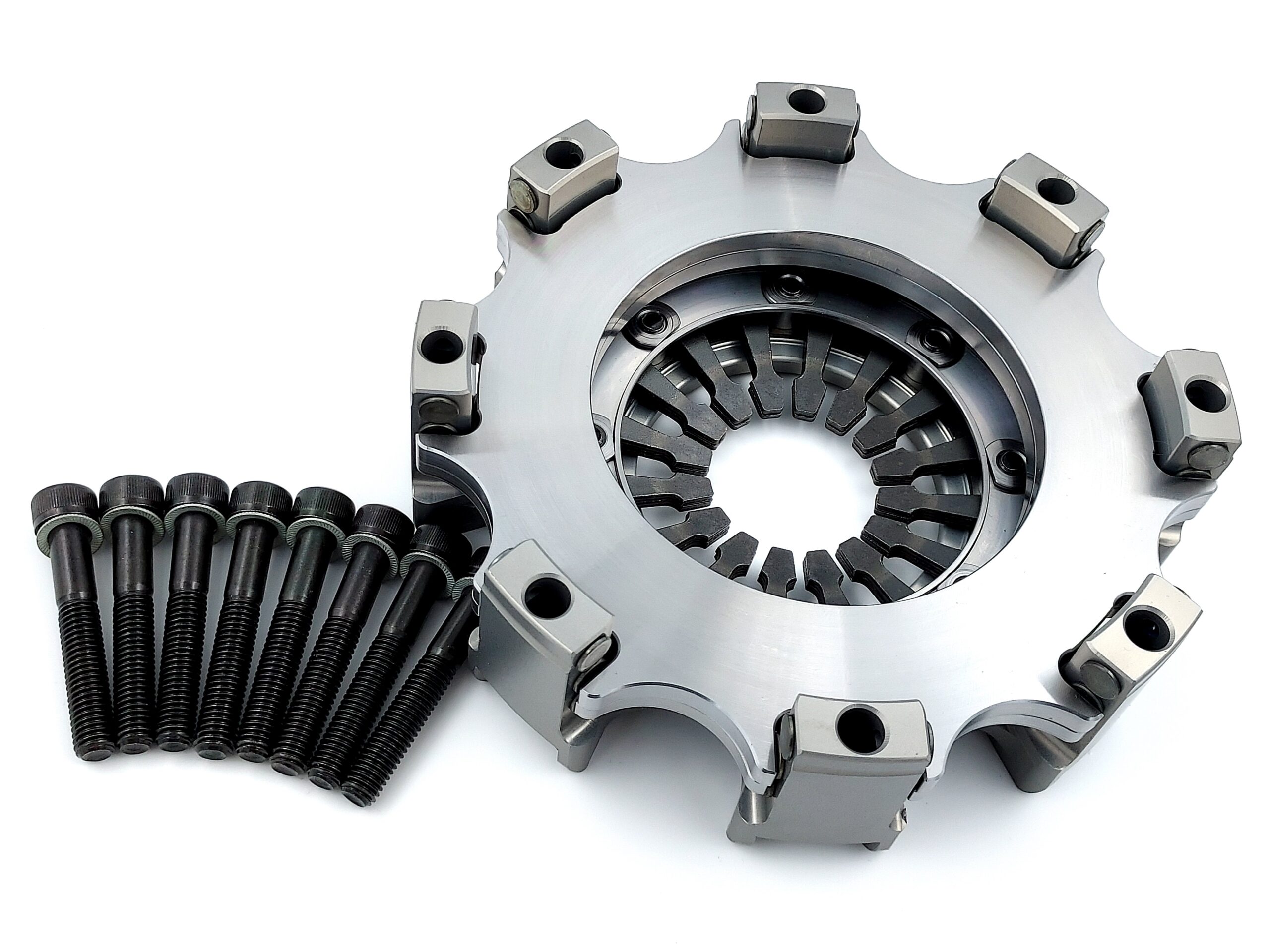

2804 TTV Racing 140mm (5.5″) Twin Plate Rally Clutch

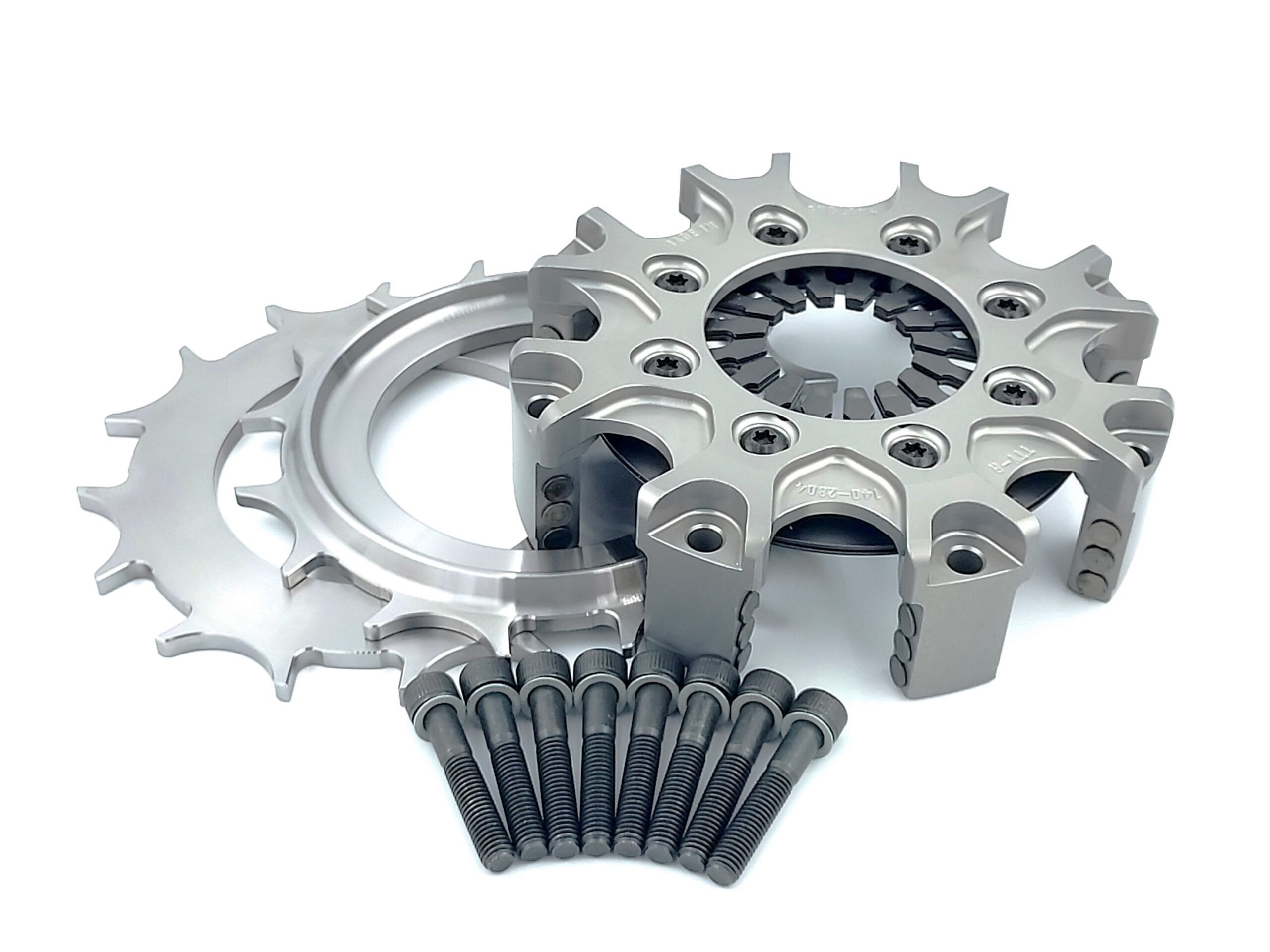

2804 TTV Racing 140mm (5.5″) Twin Plate Rally Clutch - Image 2
2804 TTV Racing 140mm (5.5″) Twin Plate Rally Clutch - Image 3
    • 2804 Series Twin Plate Race Clutch 140mm (5.5″)
    • This clutch uses Cerametalic drive plates of 5.6mm thick
    • Perfect for any lightweight vehicle used in Hill-Climb, Circuit or Rally applications
    • Assembly Rotational Mass 0.00709KG.m2
    • Low Ratio; 653NM (482 lbft)
    • High Ratio; 834NM (615 lbft)
    • High rigidity hard anodized aluminium clutch cover
    • Chrome-moly Pressure Plates for a longer clutch life.
    • Replaceable hardened wear pads reduce pressure plate release stiction
    • High quality engineered drive hubs
    • High Tensile Clutch Fixings and Lock washers included
    • 8 Pad Cerametalic sintered drive plate with high fatigue resistance for a long service and smooth engagement
    • Fully Re-buildable



2804 TTV Racing 140mm (5.5″) Twin Plate Rally Clutch

Design:Lightweight 5.5" 140mm Rally Clutch
Part No:2804
Weight KG:

Description

2804 Series Technical Data Download
