BMW S50 S52 S54 5 Spd 215mm Rally & Circuit
BMW S50 S52 S54 5 Spd 215mm Rally & Circuit - Image 2
BMW S50 S52 S54 5 Spd 215mm Rally & Circuit - Image 3
BMW S50 S52 S54 5 Spd 215mm Rally & Circuit - Image 4
BMW S50 S52 S54 5 Spd 215mm Rally & Circuit - Image 5



  • TTV Racing Single Plate 215mm Rally,  Rally X , Circuit
  • 3 torque capacities up to 600NM
  • Two 4 or 6 paddle special high temperature ceramic drive plates
  • Clutch fixings supplied
  • For 5 Speed Gearbox with 29x10T Spline
  • With a simple modification to the gearbox it can be used with the standard BMW release system
  • Internal Hydraulic release bearing conversions can be supplied for aftermarket gearboxes

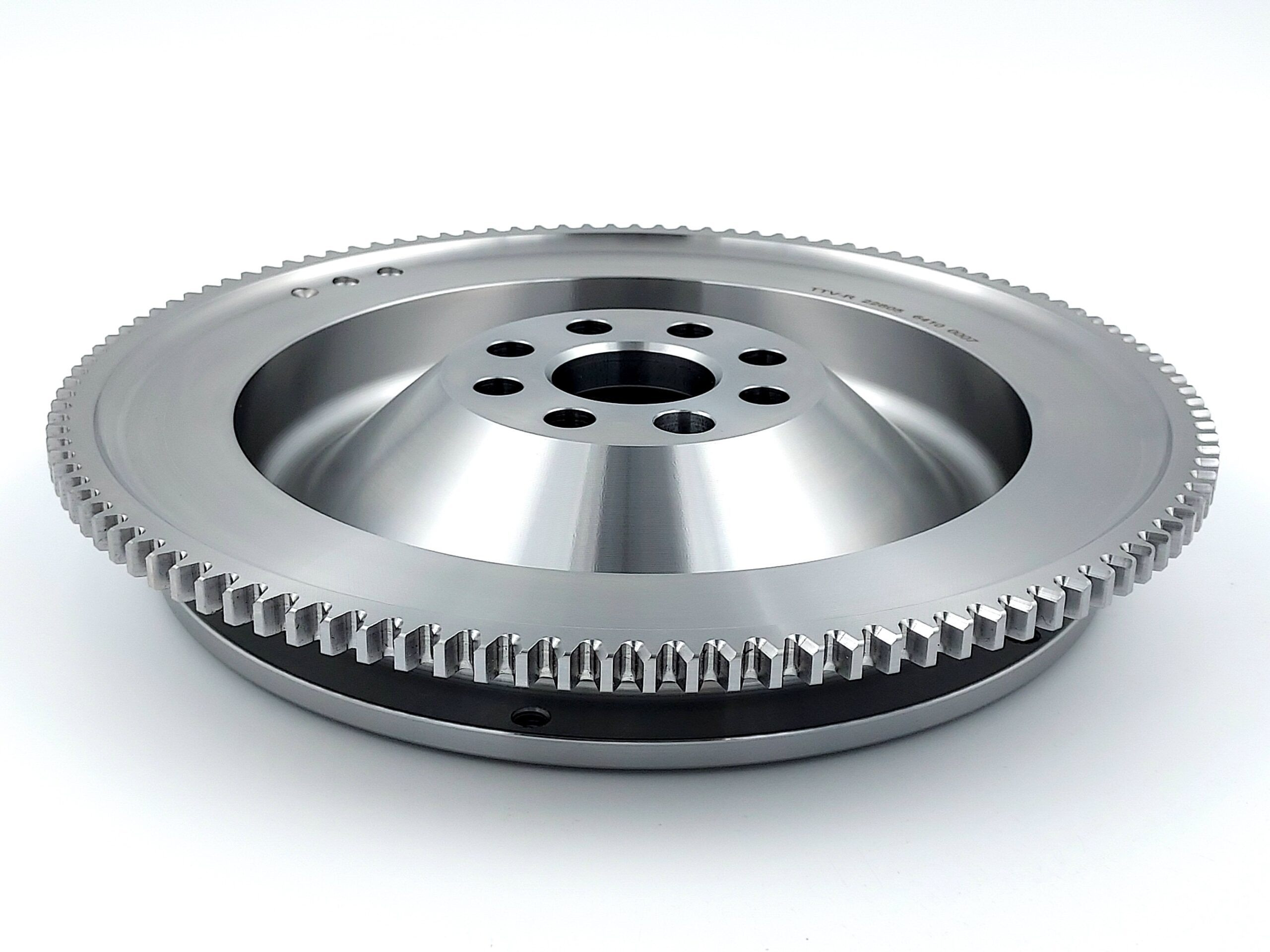

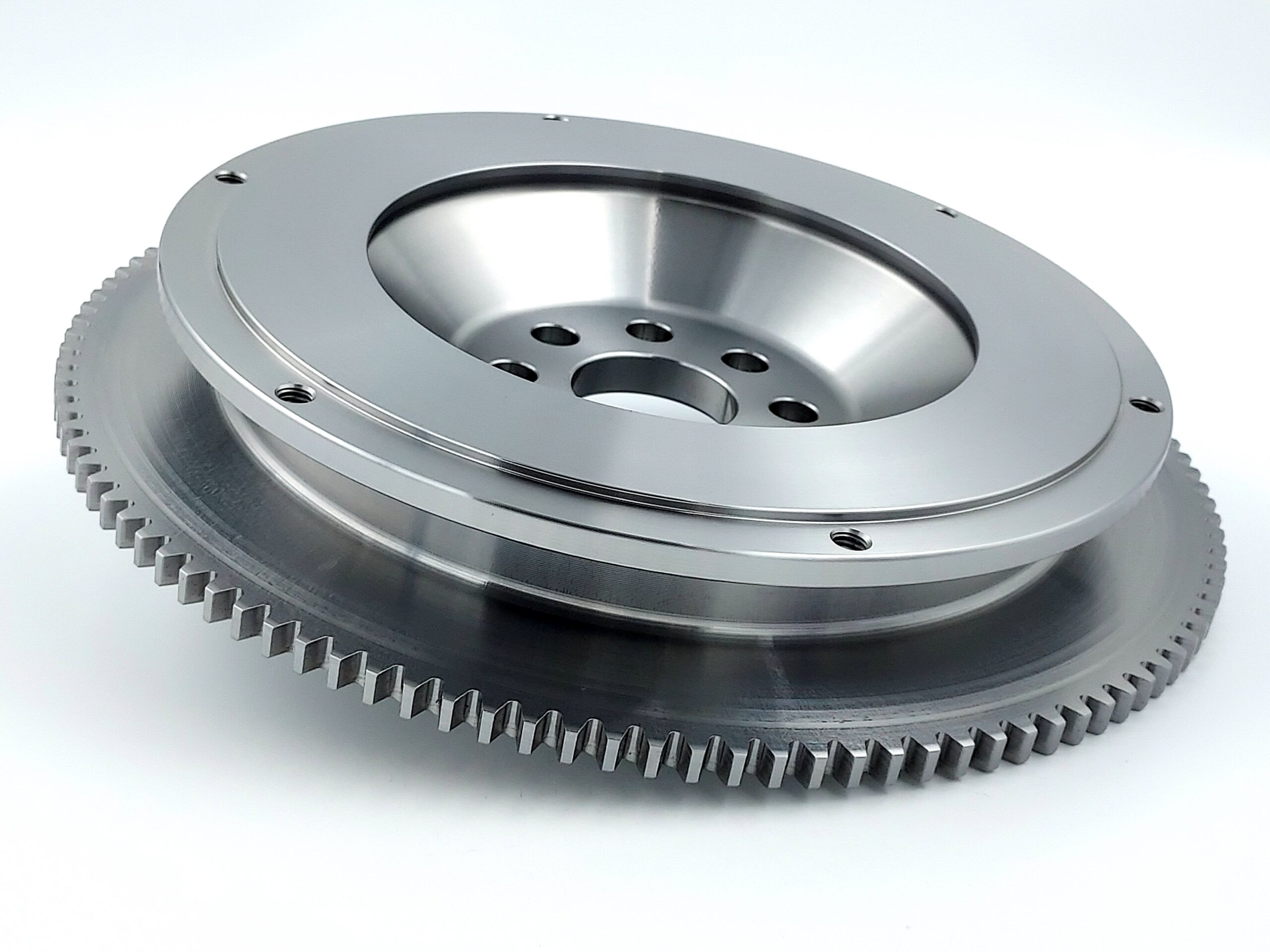

  • Specially designed flywheel CNC machined from forged chromoly billet steel
  • Balanced to motorsport standards
  • Integral ring gear teeth for high rpm safety
  • Mid inertia flywheel design
  • If required a custom version of this part can be designed and manufactured on request.

BMW S50 S52 S54 5 Spd 215mm Rally & Circuit

Design:Rally, RallyX, Circuit, Drift
Part No:6410
Weight KG:5.8 (Flywheel)
